Outdoor LED Display Enclosure – Side-Opening Aluminum Frame,Advanced Cooling

Front view rendering of LED display enclosure compatible with SMD, MIP, and COB modules.

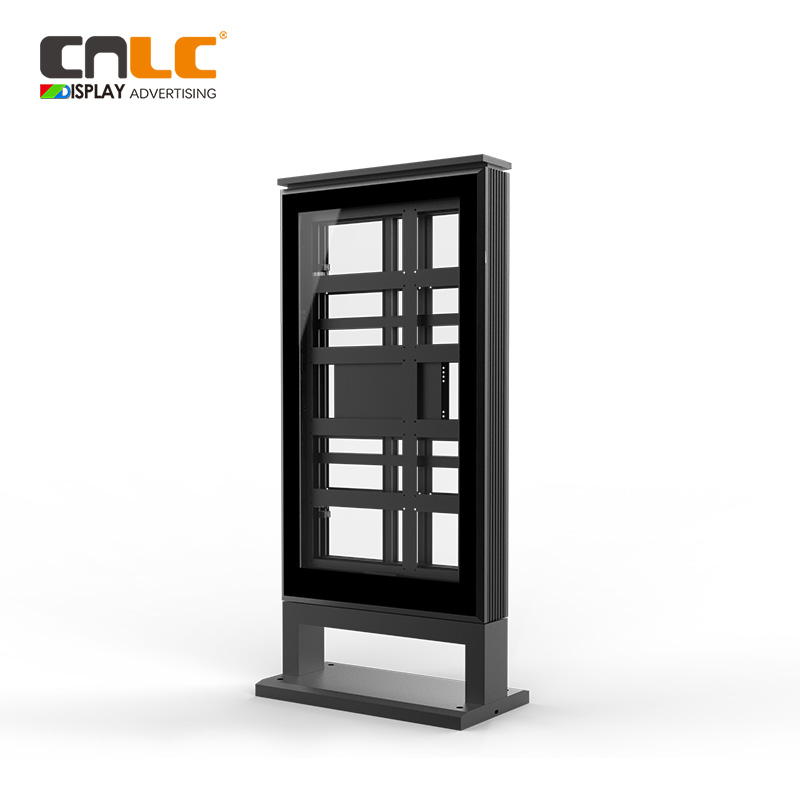

Side view rendering of outdoor LED enclosure showing side-opening maintenance access and ventilation design.

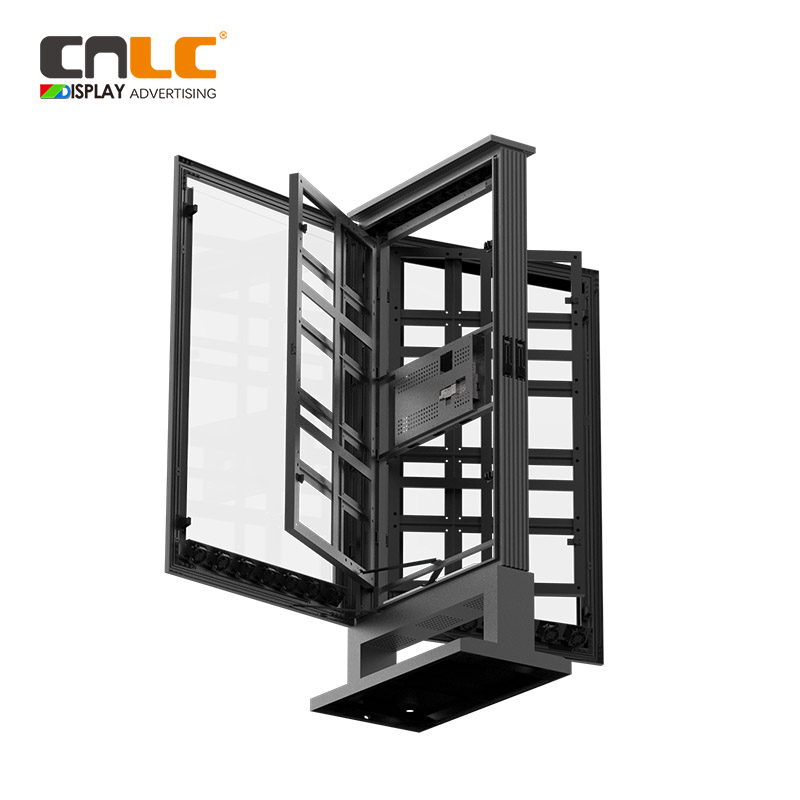

Exploded view rendering of LED display enclosure illustrating modular structure, airflow ventilation, and component integration.

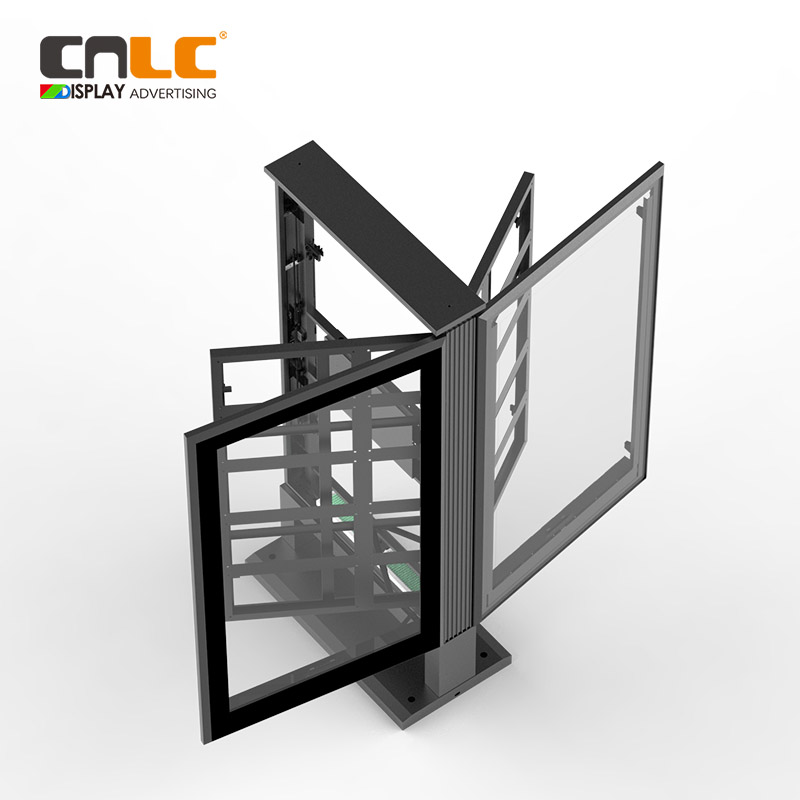

Back view rendering of LED display enclosure highlighting intelligent thermal management system.

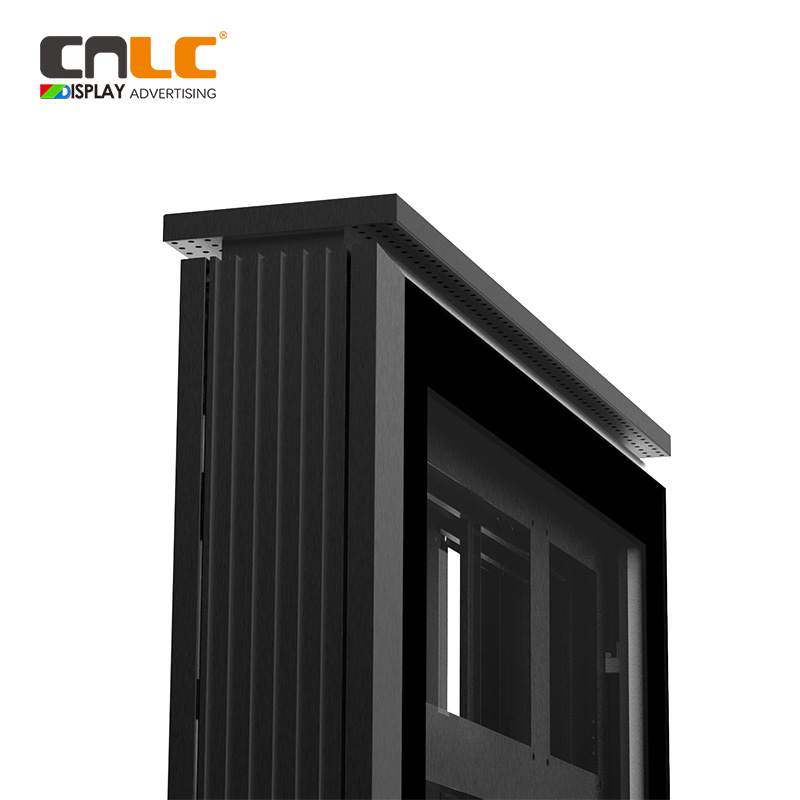

Angled view rendering of LED enclosure showcasing durable aluminum frame and IK10 anti-reflective safety glass.

Outdoor LED Display Enclosure – Side-Opening Aluminum Frame,Advanced Cooling

Our Outdoor LED Display Enclosure is a versatile solution designed for SMD, MIP, and COB modules. Featuring a durable aluminum frame, IP56 weatherproof protection, IK10 anti-reflective glass, and side-opening maintenance, it ensures reliability and easy servicing for outdoor LED displays and DOOH advertising signage.With an advanced thermal management system and intelligent fan control, it keeps LED modules cool and extends component lifespan. CNLC also provides a complete enclosure solution, from structure design to assembly support, helping clients deploy fully optimized LED displays with ease.

Numéro d'article :
CNLC-ED-250
Taille :
Customize
rapport de résolution :
SMD/MIP/COB
Matériel :
Aluminum Structure
Couleur :
Black / Silver / Grey / Customize
Qualité imperméable :
IP56

Renseignez-vous maintenant

détails du produit

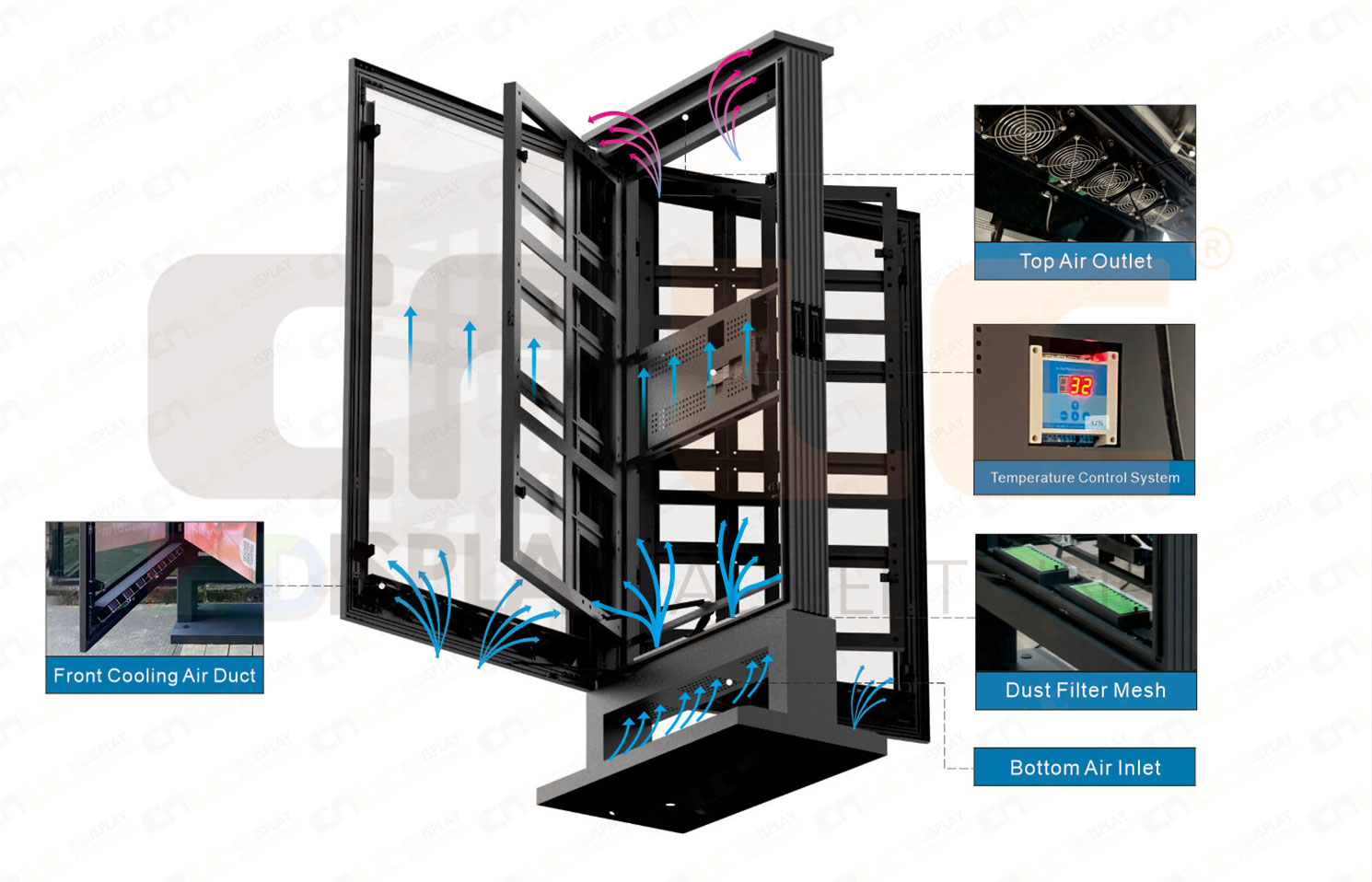

Advanced Cooling System

◆ Our LED display enclosure features a precision-engineered thermal management system designed for continuous outdoor operation. Fresh air is drawn in from the bottom through a high-density dust filter, effectively blocking airborne particles before it enters the enclosure. The airflow is then channeled upward and expelled through top-mounted high-performance exhaust fans.

◆ For enhanced cooling efficiency, the enclosure also incorporates front-facing ventilation ducts equipped with dedicated fans to remove heat buildup directly in front of the LED modules. This ensures uniform temperature distribution across the entire display surface.

◆ An intelligent temperature control system continuously monitors internal conditions and automatically adjusts fan speeds, optimizing cooling, minimizing noise, and extending the lifespan of components. This design is ideal for outdoor LED billboards and DOOH advertising displays in high-brightness, high-temperature environments.

Advanced cooling system with dust-proof filter and intelligent temperature control for outdoor LED display enclosure.

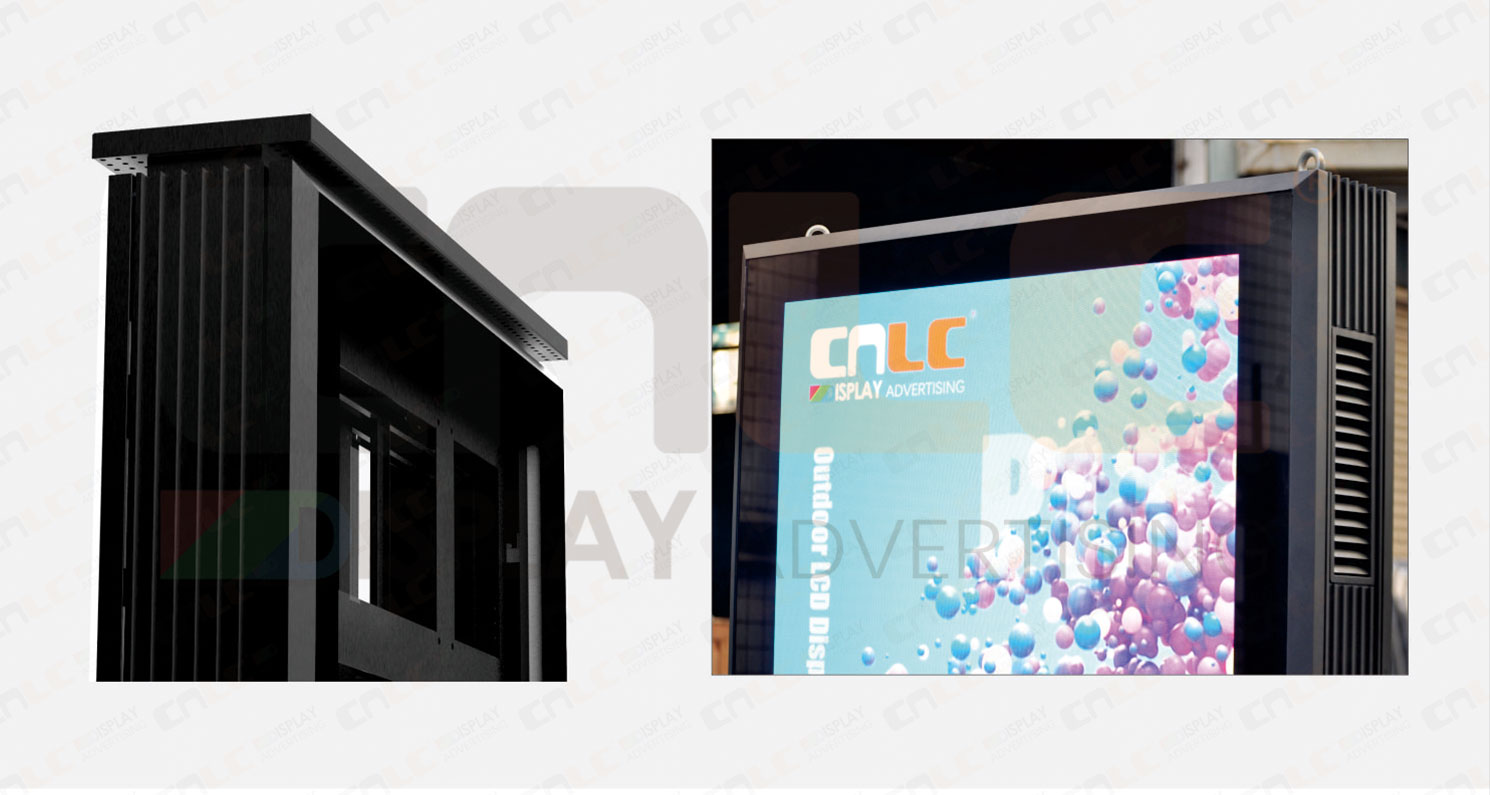

Durable Aluminum Construction

◆ Crafted from high-grade aluminum profiles, our LED enclosures offer exceptional corrosion resistance, weatherproof protection, and lightweight durability. This ensures your outdoor LED screen or digital signage remains stable and secure even in harsh environments.

Aluminum LED enclosure for outdoor digital signage and LED billboard.

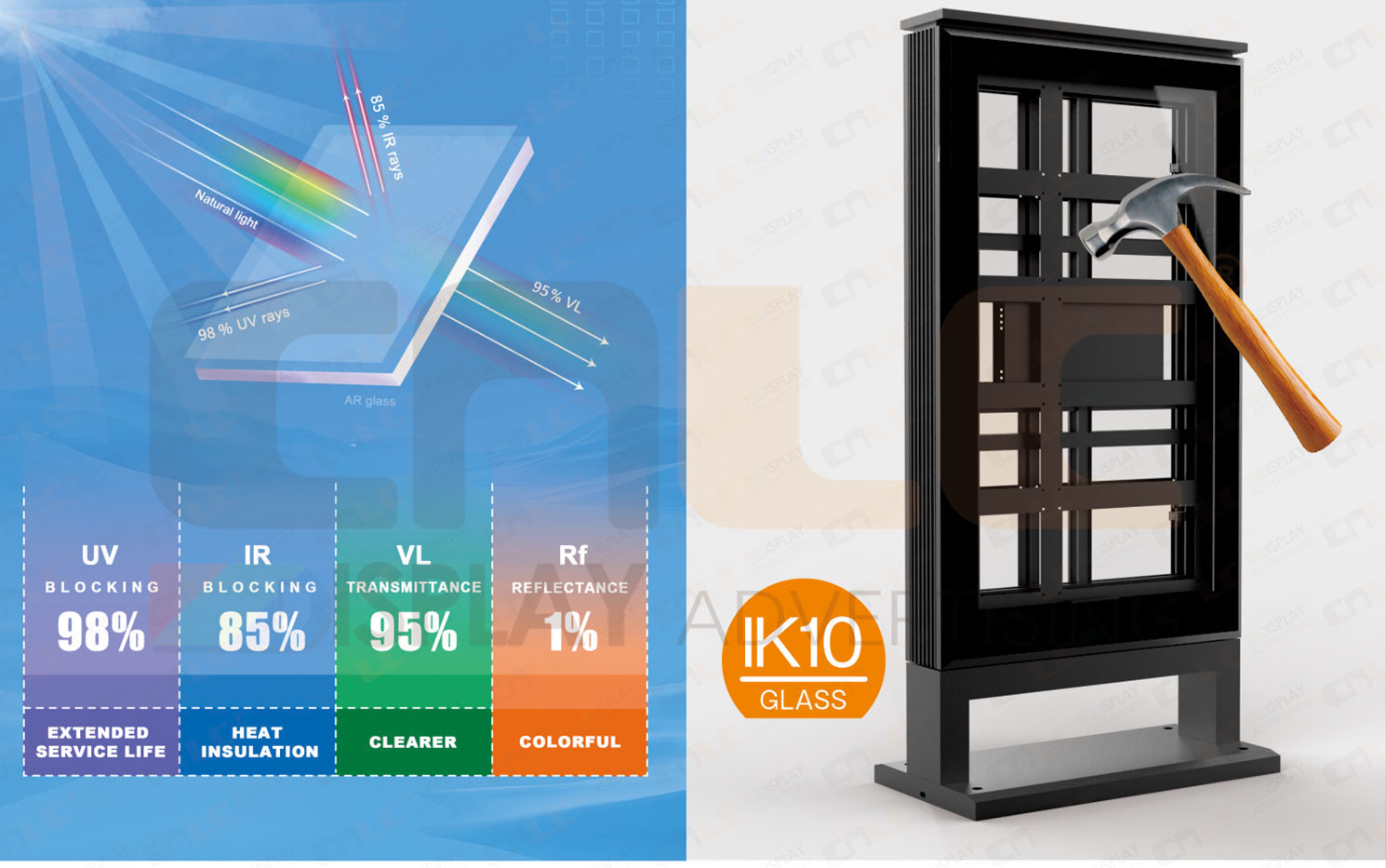

IK10 Anti-Reflective Safety Glass

◆ Our LED enclosures feature IK10-rated laminated safety glass for superior impact resistance, combined with anti-reflective coating to reduce glare and improve visibility under bright sunlight. This dual-protection design ensures outstanding durability and clear image quality, making it perfect for DOOH (Digital Out-of-Home) advertising displays in public spaces.

IK10 anti-reflective safety glass for DOOH outdoor LED display enclosure.

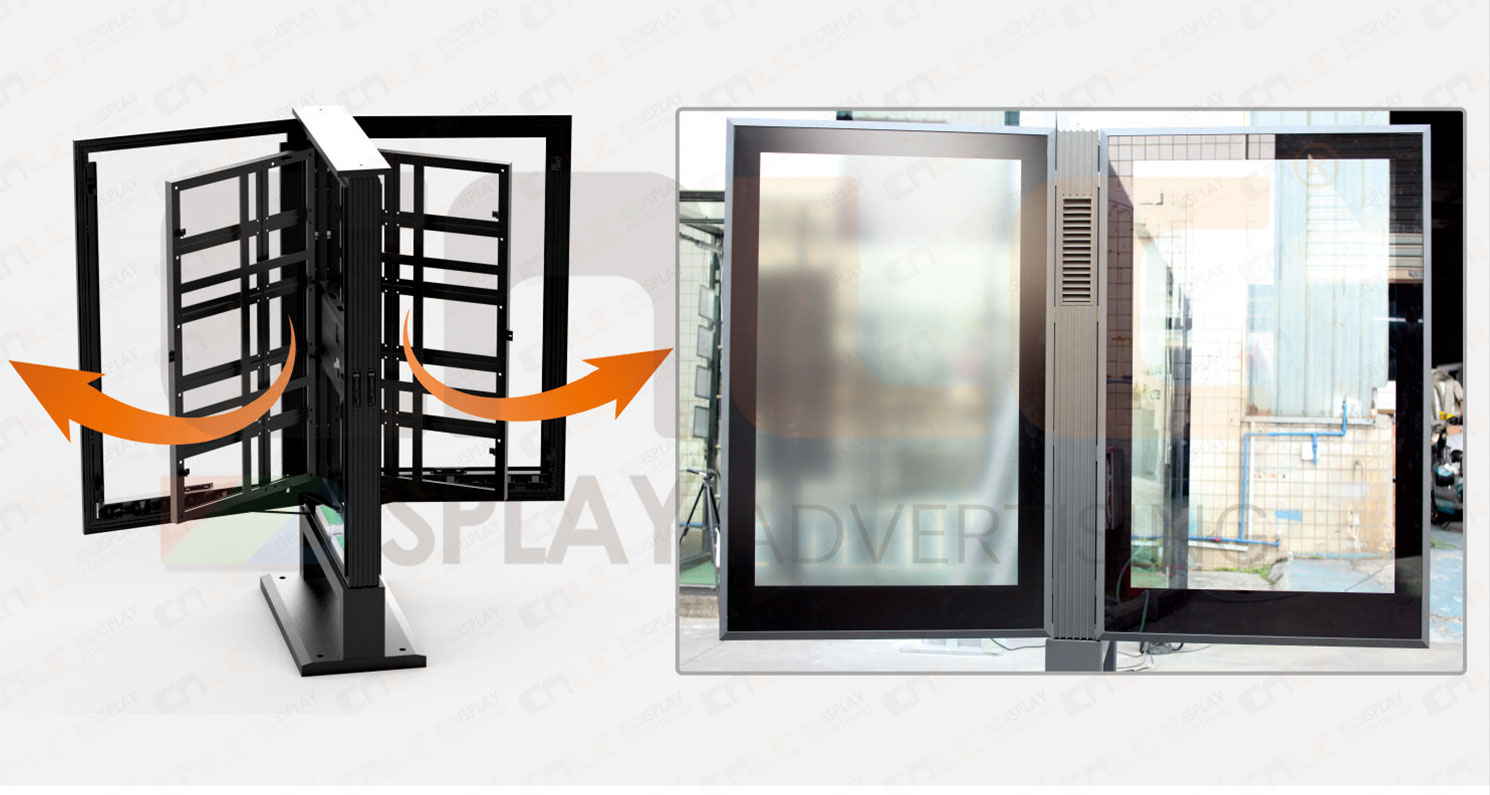

Side-Opening Maintenance Access

◆ Our side-opening LED enclosure design allows for quick and convenient maintenance from the side panel, eliminating the need to remove the entire display. This design improves on-site servicing efficiency and minimizes downtime, making it ideal for large-format outdoor LED billboards and freestanding digital signage installations.

Outdoor LED Totem with Smart Cooling and Airflow Design

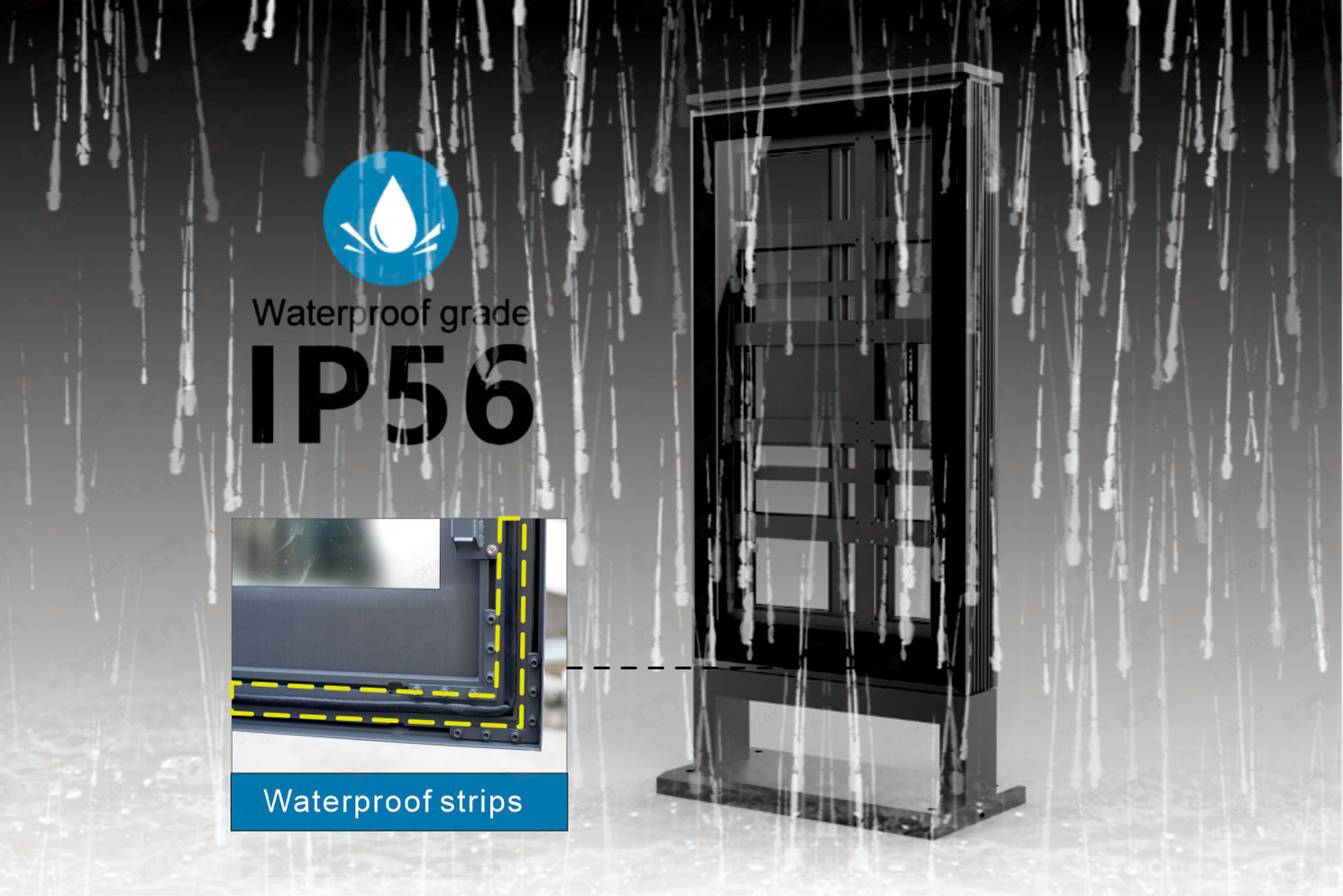

Rugged IP56 Protection for Outdoor Reliability

◆ Our LED display enclosures are built with IP56-rated weatherproof protection, ensuring full resistance to dust, heavy rain, and extreme outdoor conditions. This makes them ideal for outdoor LED billboards, digital signage displays, and public information screens that require long-term stability in challenging environments.

IP56 Outdoor LED Totem for Dust and Water Resistance

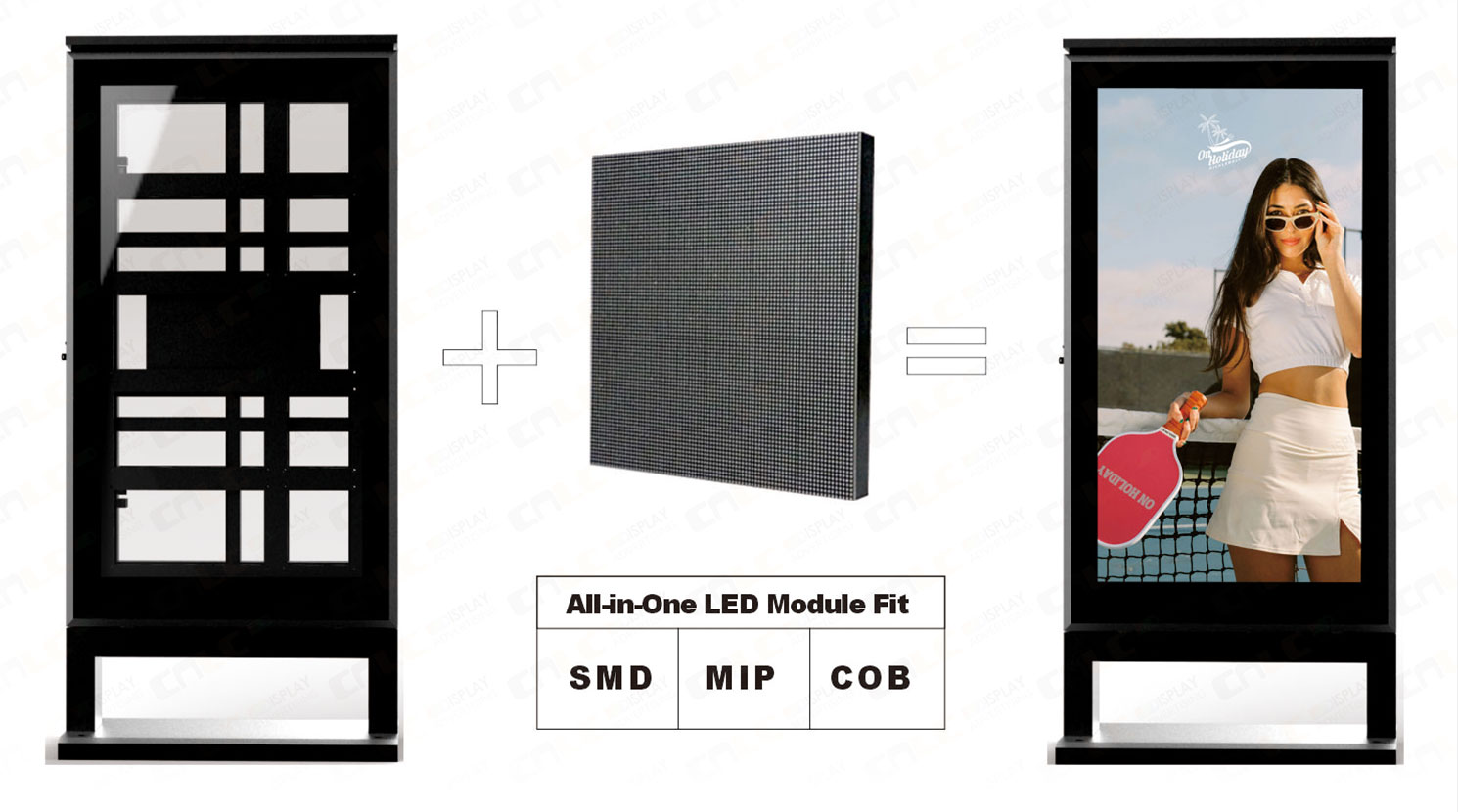

Universal LED Module Compatibility

◆ Our LED display enclosures are engineered to fit a wide range of LED packaging technologies, including SMD LED modules, MIP LED modules, and COB LED modules. Whether you’re building a new outdoor LED billboard or upgrading an existing digital signage display, our enclosure ensures perfect integration and reliable performance.

From Structure to Display – One Complete Solution

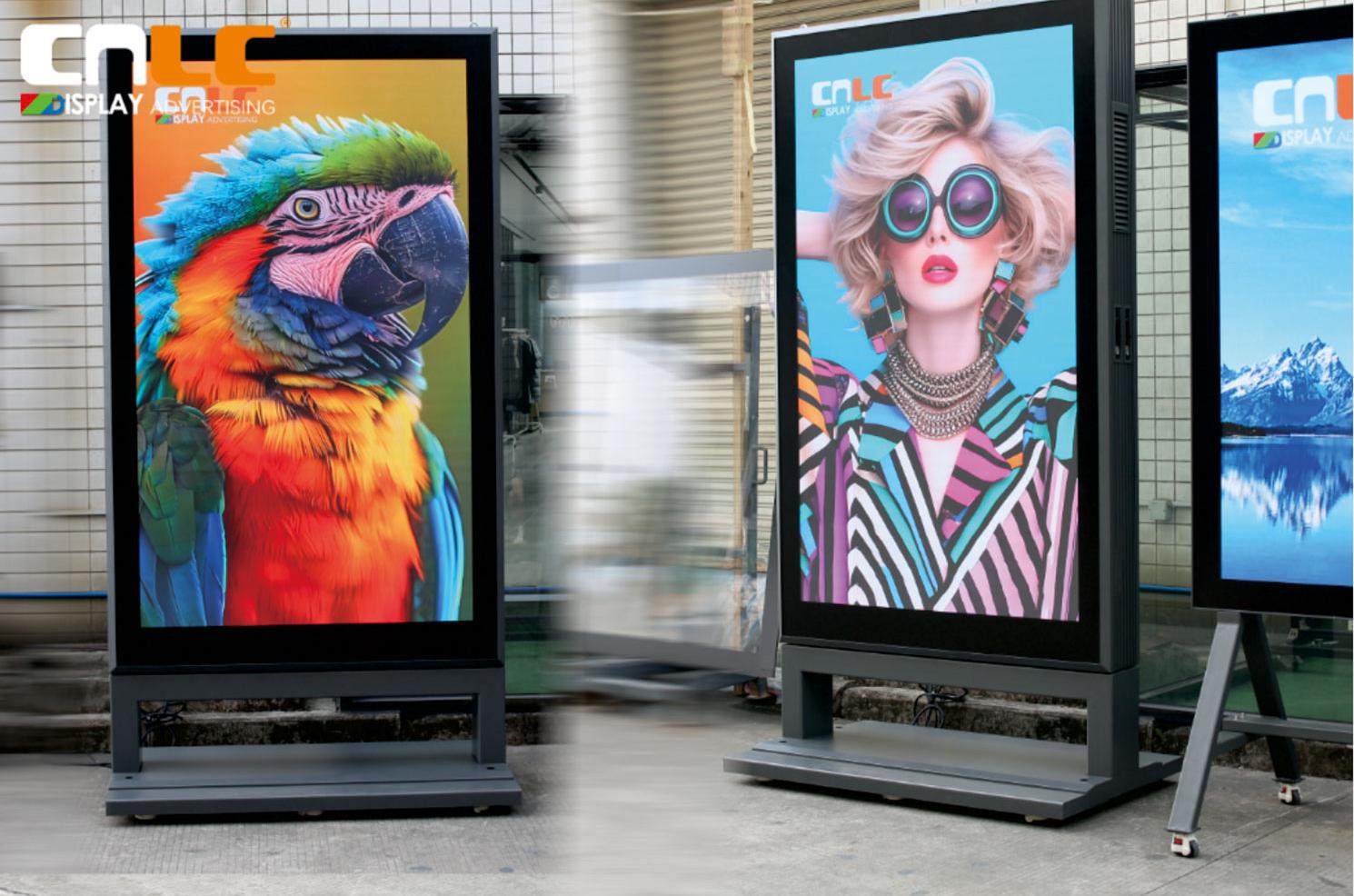

Project Cases

TECHNICAL SPECIFICATIONS

Material of Frame and Support Structural	Aluminum profile and steel frame
Cooling system	Build in cooling fans
Embedded heater	Optional
Media update	Remote control (LAN and WIFl)
Operating Ambient Temperature	-20℃~+60℃
Waterproof level	Front IP56
Maintenance method	Back
Energy Saving design	4.2-5Vvoltagedesign

WHY CNLC OUTDOOR DIGITAL DISPLAYS？

IP rating aluminum profile casing resists dust,rain,snow and anti-corrosion.
Easy to install, moving to right place ,connect to power and mount the bolts on the ground. Lower the labor costs for installation and maintenance.
Close visual and auditory impact allows the viewers to more realistically feel the advantages of the product, which is the best way to promote products and services.
IK10 vandal resistance and intelligent thermal managment ensure the durability of CNLC outdoor digital displays.
Smoothly operating under temperature from -35 to 60 ℃，even in mountain and seaside.
