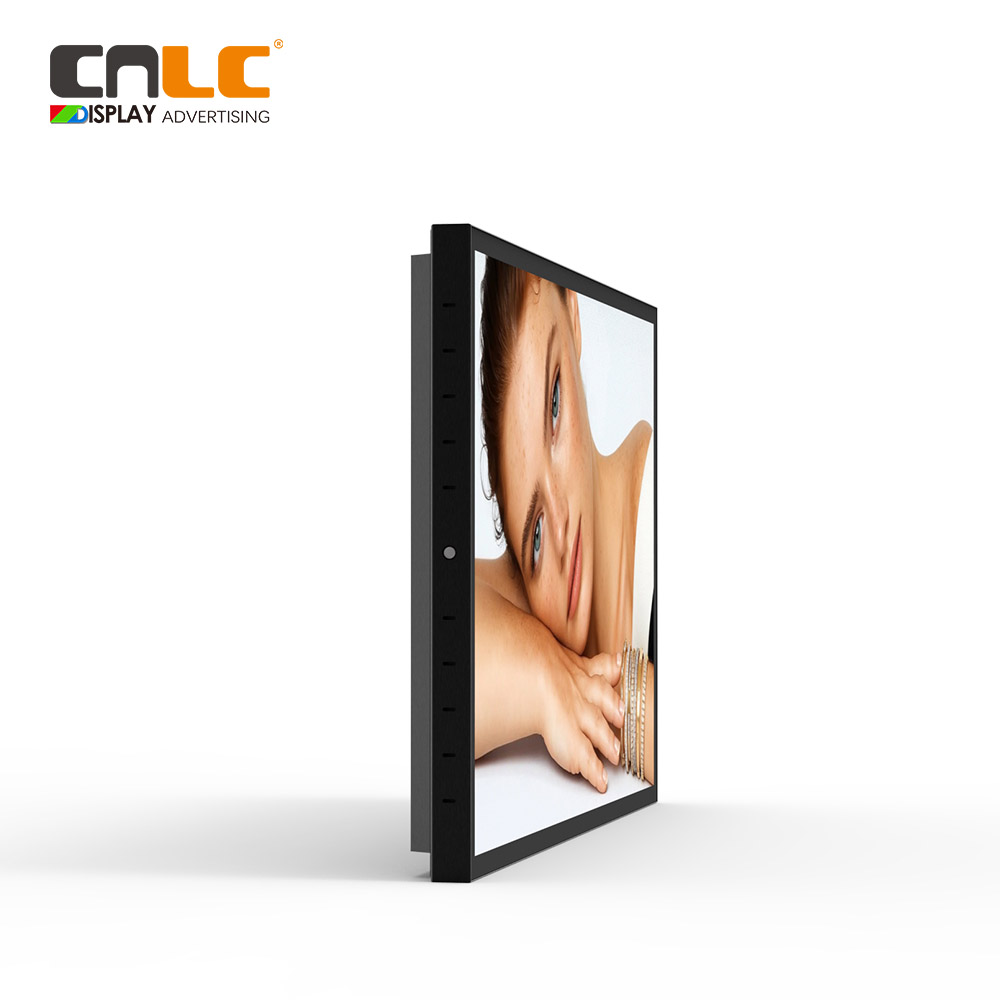

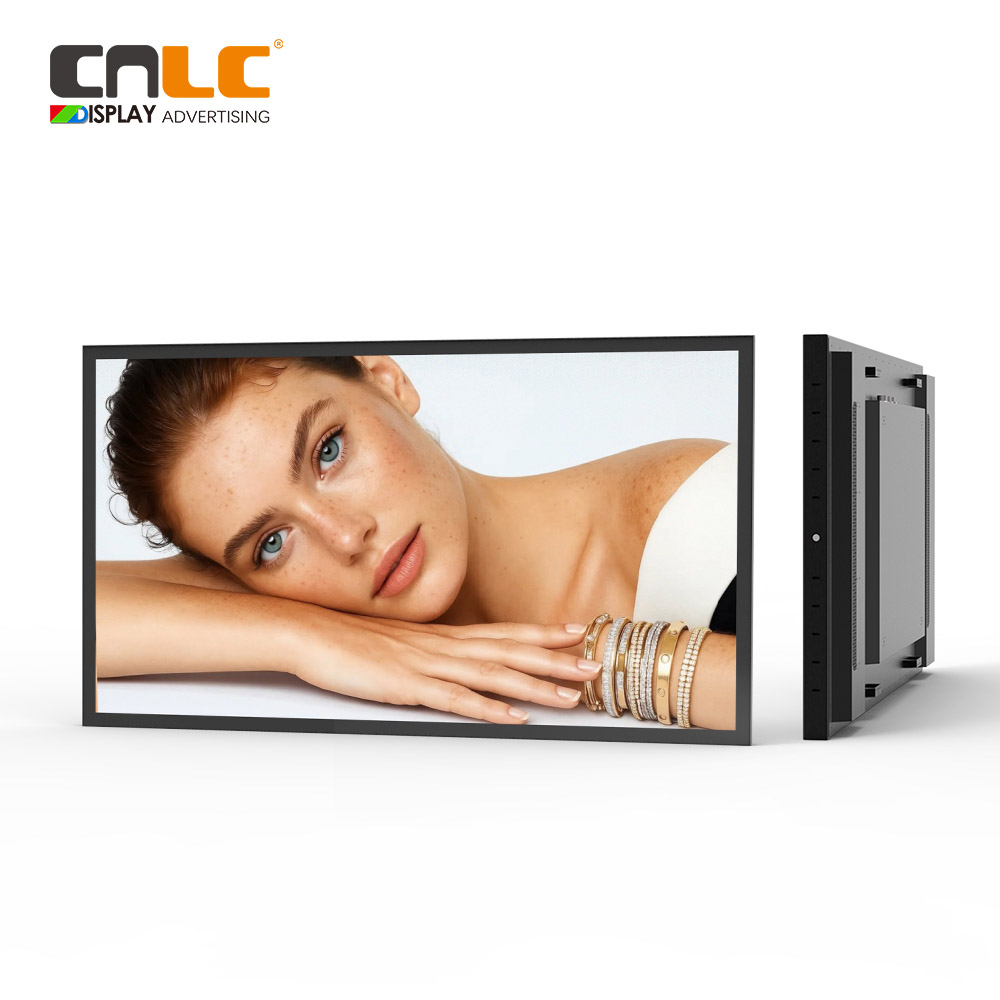

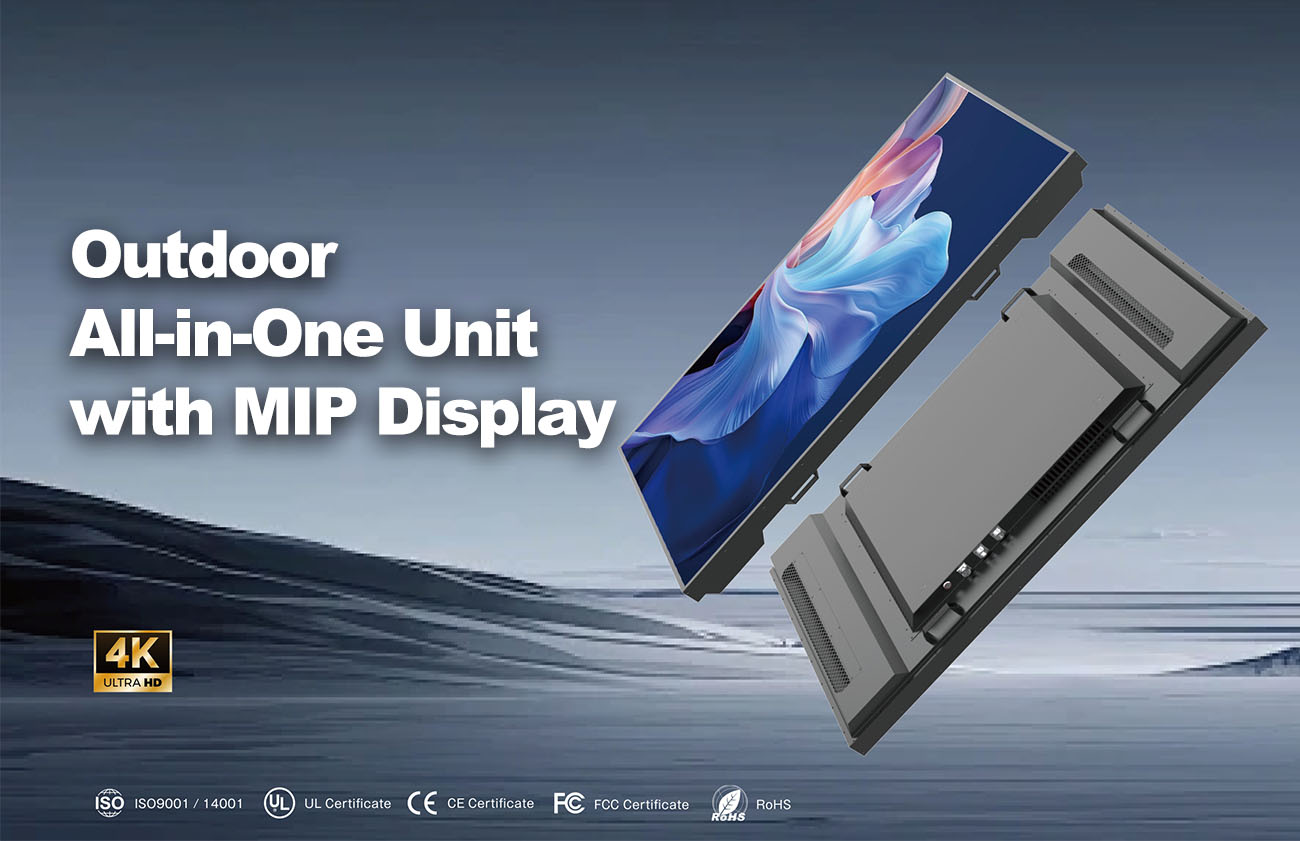

The Fine Pitch MIP LED Display is an all-in-one LED display solution designed for commercial digital signage and smart city applications. Featuring advanced MIP LED technology, it delivers high brightness, ultra-fine pixel performance, and excellent image consistency for premium visual experiences. With flexible wall-mounted and floor-standing configurations, IP66 protection, and efficient thermal management, it provides reliable 24/7 operation for retail, transportation, public spaces, and outdoor digital signage projects.
Numéro d'article :
LE-OU-EITaille :
CustomizeLuminosité :
4500 cd/m²rapport de résolution :
3840*2160Matériel :
Aluminum StructureCouleur :
Black / Silver / Grey / CustomizeQualité imperméable :
IP66

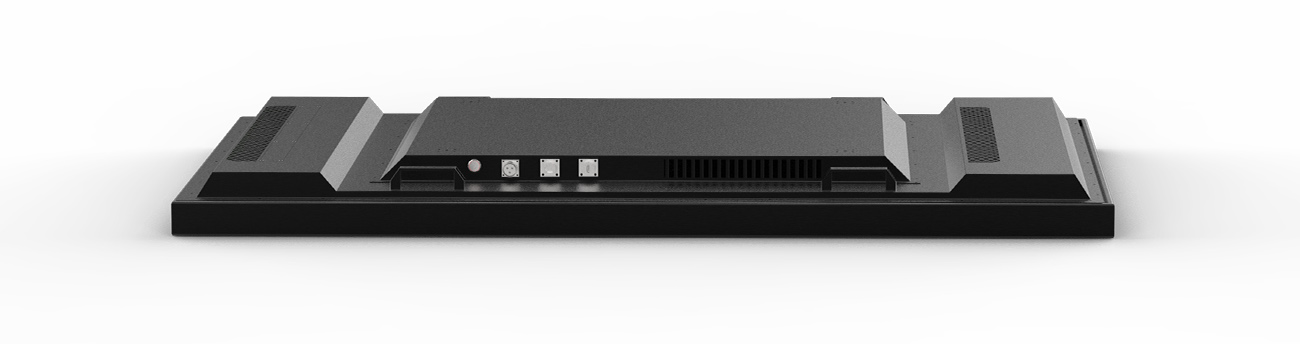

The lightweight aluminum frame design provides excellent mechanical strength, corrosion resistance, and efficient heat dissipation. This durable enclosure structure improves reliability while supporting the requirements of high-performance LED display systems in commercial and outdoor environments.

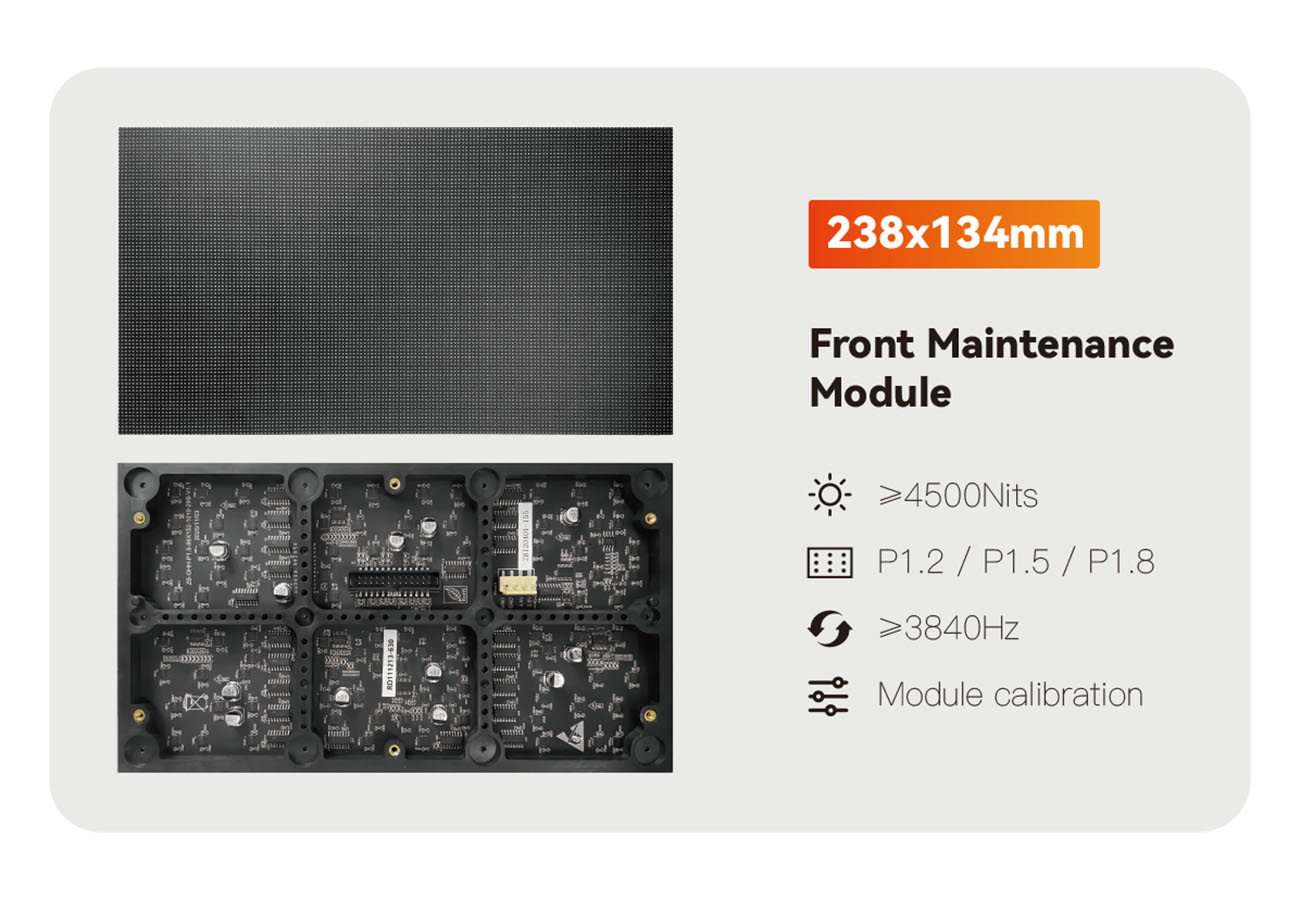

Powered by advanced MIP LED technology, the LED display supports P1.2, P1.5, and P1.8 pixel pitch configurations with over 4500 nits brightness and ≥3840Hz refresh rate. Combined with precise module calibration, it delivers consistent color accuracy, smooth image performance, and exceptional visual quality for close-viewing applications.
Designed for outdoor entertainment and commercial applications, CNLC Outdoor TV combines high-brightness 4K display performance, durable aluminum construction, and weather-resistant protection to deliver reliable visual experiences for patios, restaurants, resorts, retail spaces, and outdoor advertising environments.

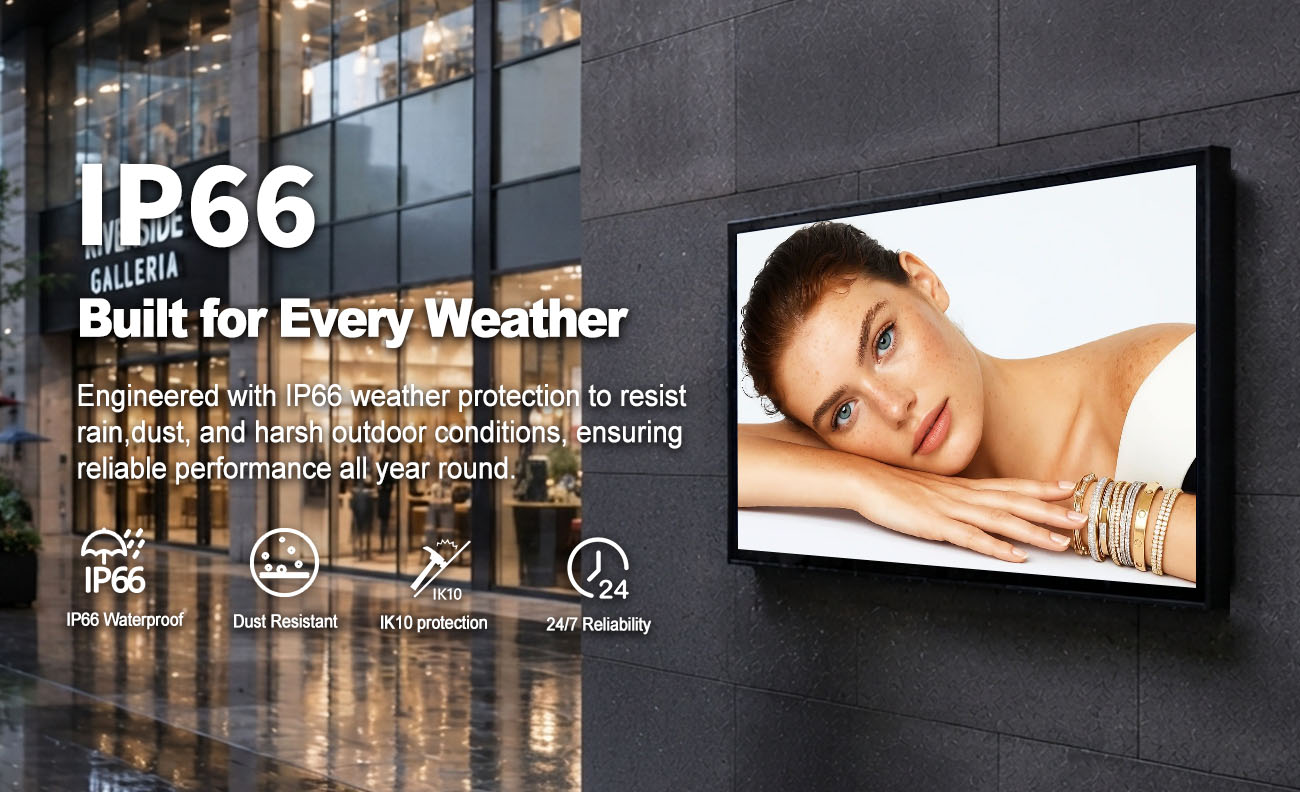

Engineered with an IP66-rated enclosure, this outdoor digital signage display provides excellent protection against dust and water ingress. The sealed structure enhances durability and allows reliable operation in various weather conditions and challenging outdoor environments.

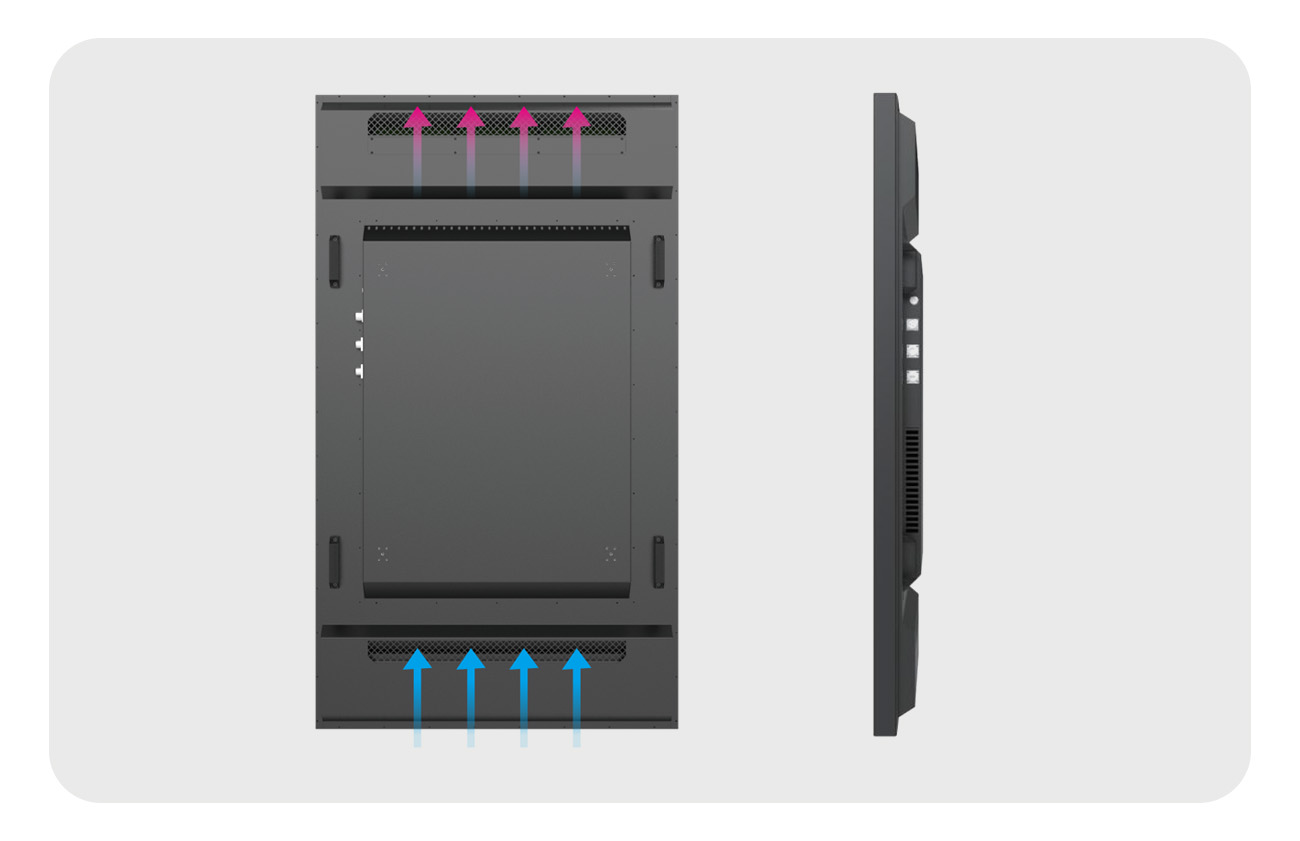

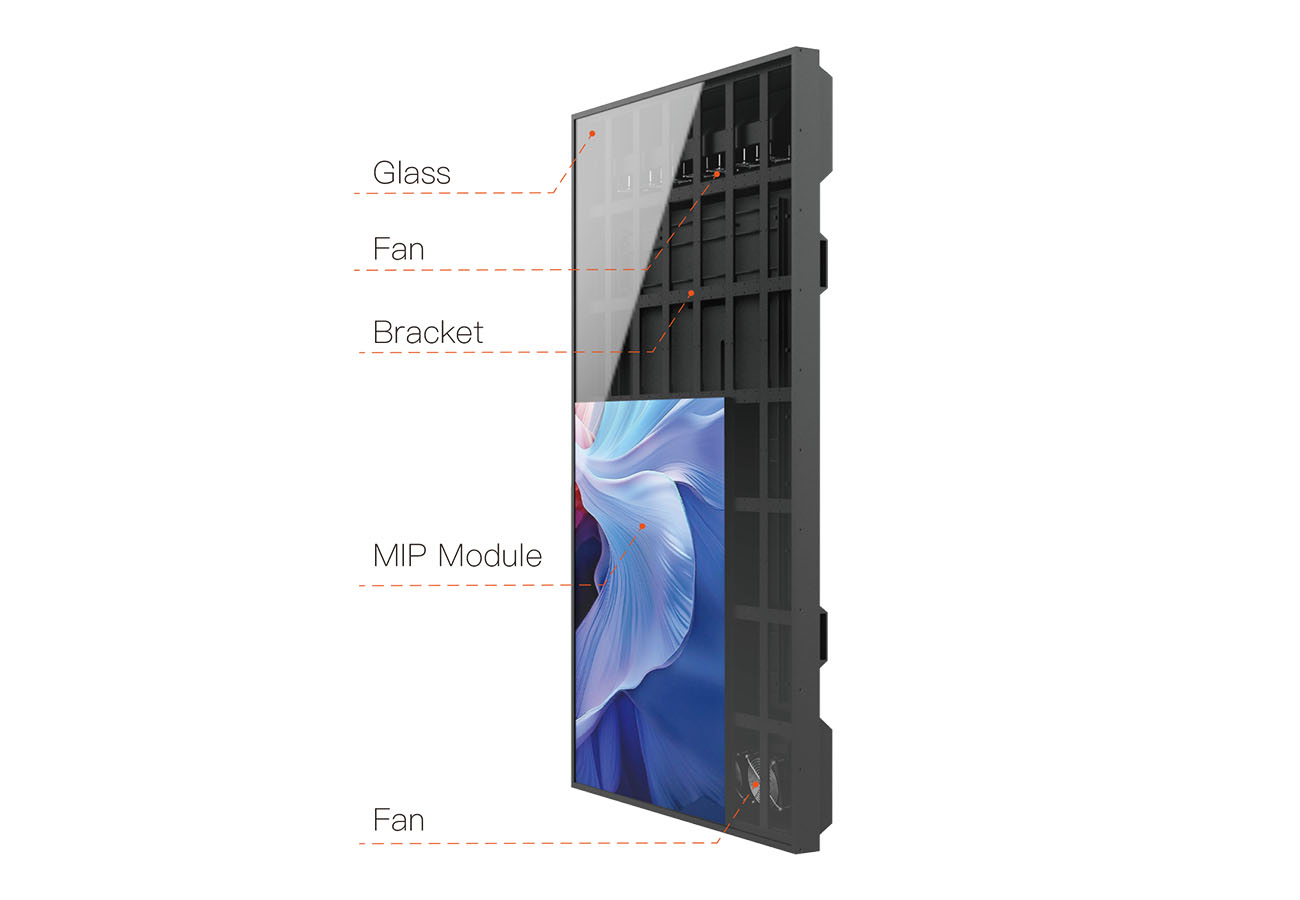

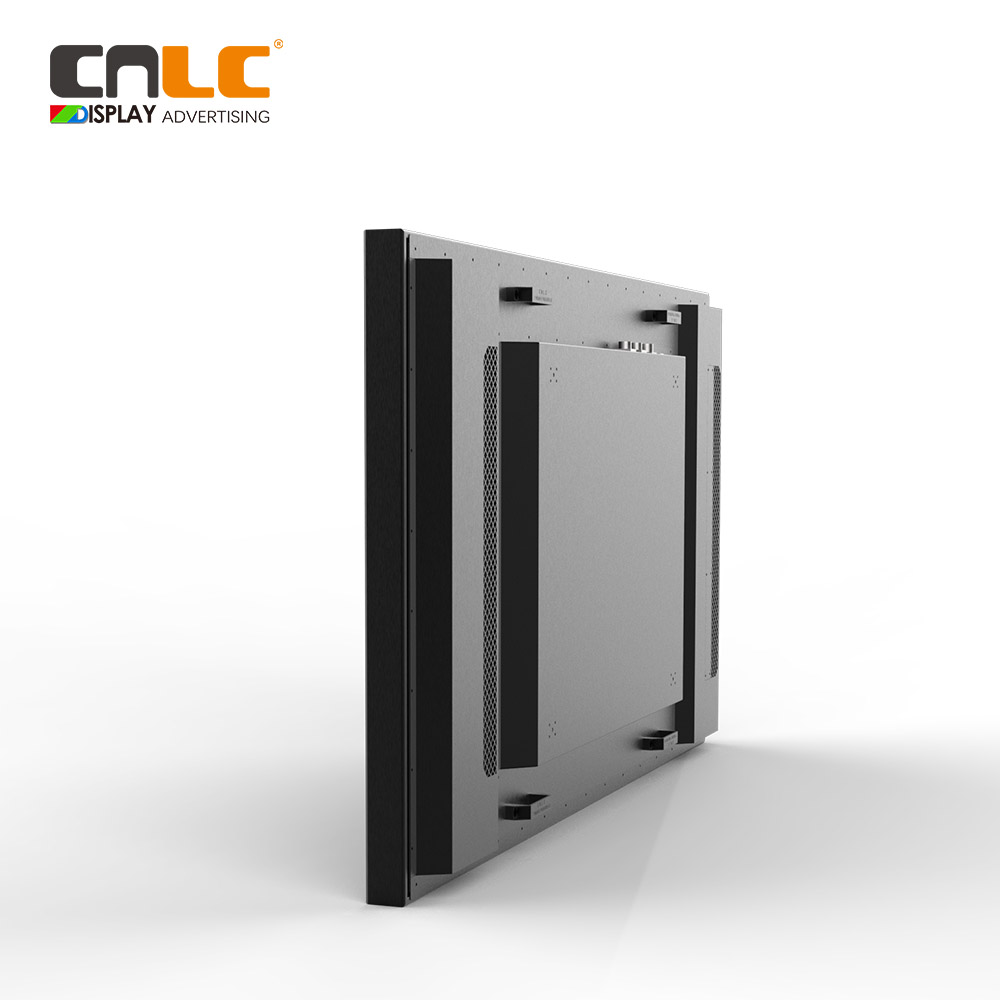

Featuring an optimized cooling system with efficient airflow management, the display effectively controls internal temperature during continuous operation. The advanced thermal design helps maintain stable brightness, reliable performance, and extended service life for 24/7 LED display applications.

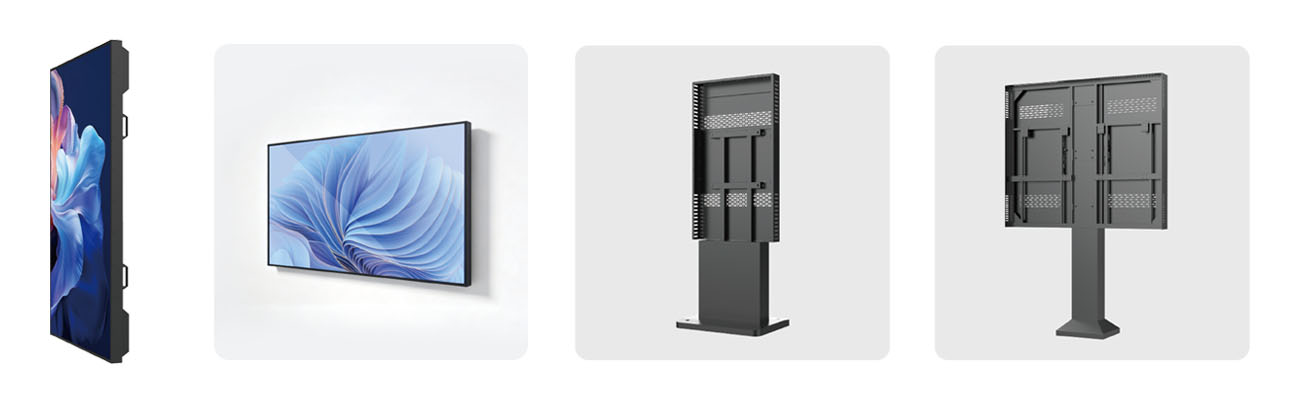

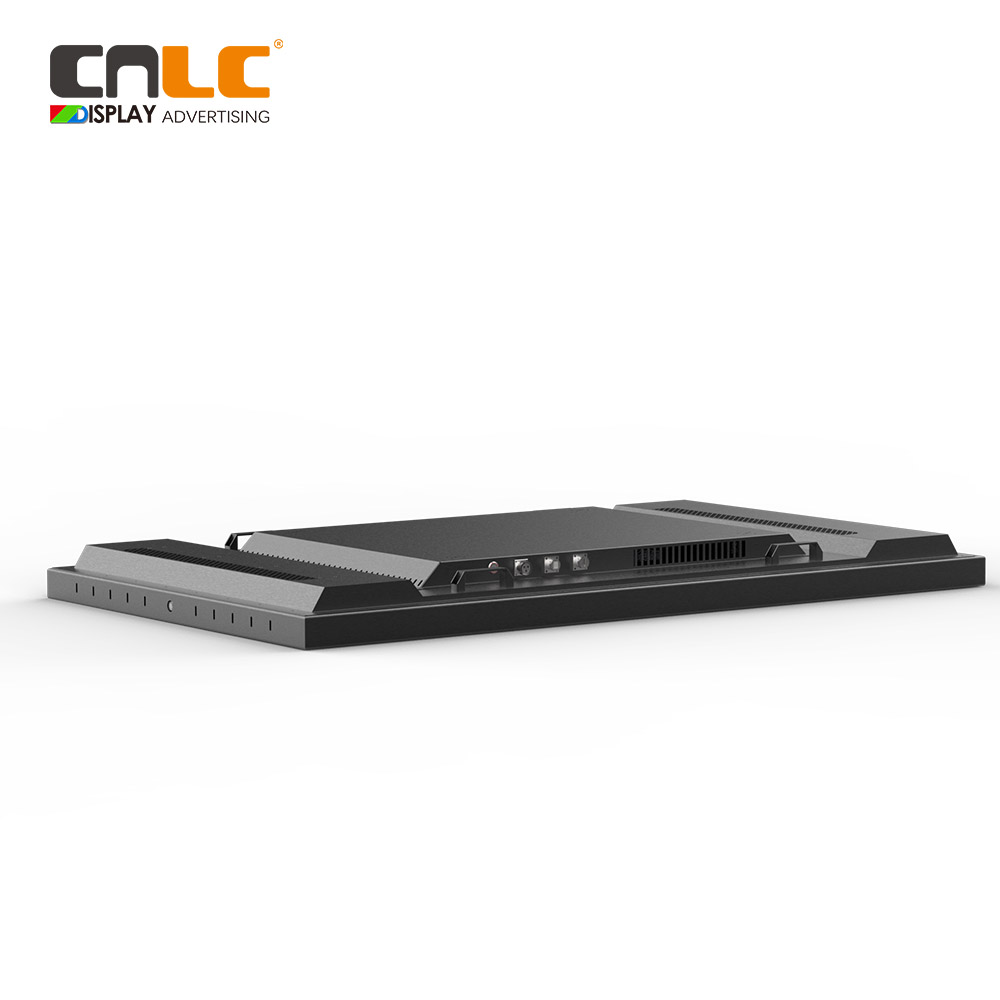

Designed for versatile deployment, the Fine Pitch MIP LED Display supports both wall-mounted installation and floor-standing LED totem configurations with customized enclosures. This flexible design allows the display to adapt to various commercial environments, including retail stores, smart city spaces, transportation hubs, digital signage areas, and outdoor advertising applications.
Certified for Global Quality and Compliance
-17.jpg "International Certifications for Outdoor LED Displays")

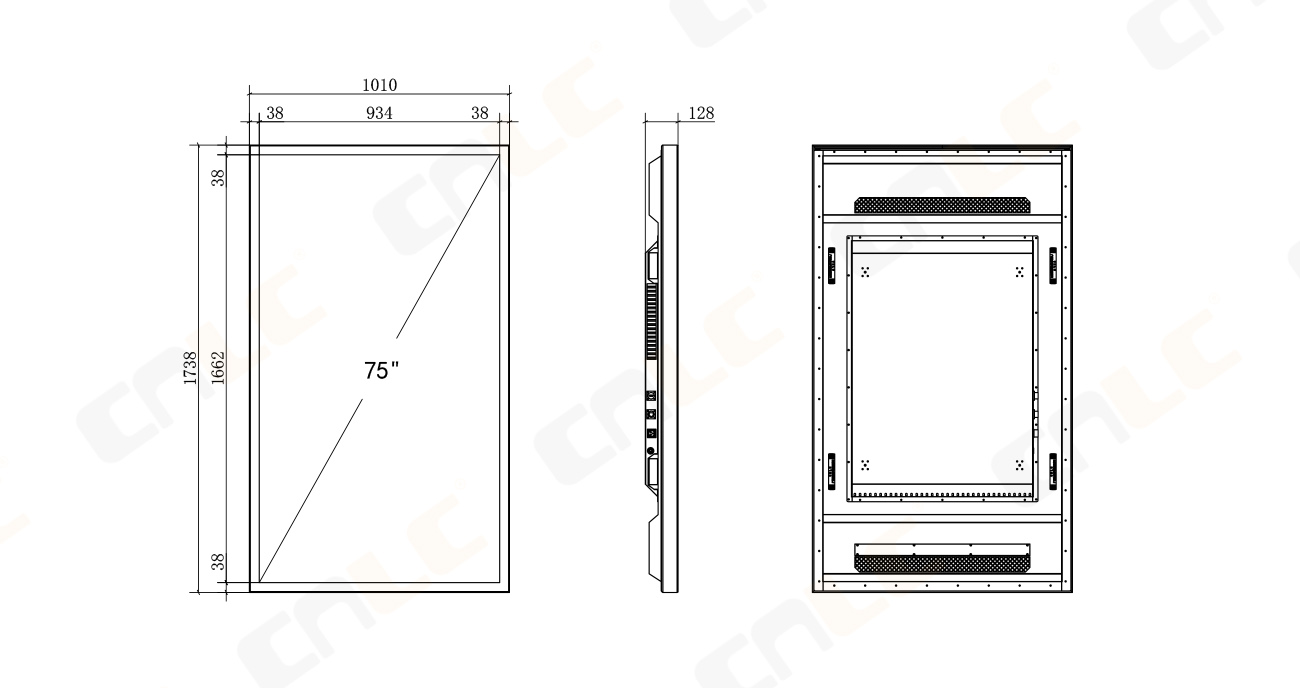

| Display Size(mm) |
65"/ 75" / 86" |
||
| Overall Size(mm) |
834*1458*125 / 968*1696*125 / 1102*1934*125 | ||
| Pixel Pitch(mm) | P1.2 | P1.5 |
P1.8 |
| Pixel Density(Dots/m²) |
649,587 |
409,891 |
288,973 |
| Ave. Power Consumption |
400W |
510W |
640W |
| Max. Power Consumption |
1000W |
1320W |
1800W |
| Brightness (cd/m²) |
3500–4000cd/m² |
4000–4500cd/m² |
|
| LED Encapsulation |
MIP0606 |
MIP1010 |
|
| Contrast | 15000:1 | ||
| Rated Voltage | 110V / 220V (optional) | ||
| Refresh Rate (Hz) | ≥3840Hz | ||
| Thickness of Tempered Glass | 6mm / 8mm(Laminated glass) IK10 | ||
| Withstand Temperature Level | -20°~50° | ||
| IP Rating | IP66 | ||
| Application |
Outdoor | ||
The Fine Pitch MIP LED Display is an all-in-one LED display solution designed for commercial digital signage and smart city applications. Featuring advanced MIP LED technology, it delivers high brightness, ultra-fine pixel performance, and excellent image consistency for premium visual experiences. With flexible wall-mounted and floor-standing configurations, IP66 protection, and efficient thermal management, it provides reliable 24/7 operation for retail, transportation, public spaces, and outdoor digital signage projects.
